Track Cleaning Vehicle
Information on this wiki page provides particular details about this model not found in our basic guide.
| Track Cleaning Vehicle | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | |||||||||||||||||||||||
| |||||||||||||||||||||||
Contents
Overview
TCS Locomotive Works DCC Track Cleaning Vehicle includes a TCS DCC decoder with factory-preset prototypical decoder configuration. This model also includes Keep-Alive® for uninterrupted operation over dirty track.
Specific Features
Features include:
- NMRA-compliant decoder operates motor and lights on DCC or DC power.
- Die-cast metal frame and roof
- Flashing LED beacon light on roof
- Powerful function-operated vacuum cleaner
- Two Magnets to get rid of metallic debris from your track
- Replaceable abrasive pads (can be purchased separately on our website)
- Replaceable traction tires (can be purchased separately on our website)
- Keep-Alive® included to keep your engine running during power interruptions due to dirty track or loss of electrical contact
Filter Information
We used Melitta Bamboo #4 Coffee Filters in order to make these. They are 2.2" wide and 2" tall. There is a 1.2" gap in between the holes. In order to make it easier, cut this out with a piece of paper so you have a template to go off of whenever you need to cut more.

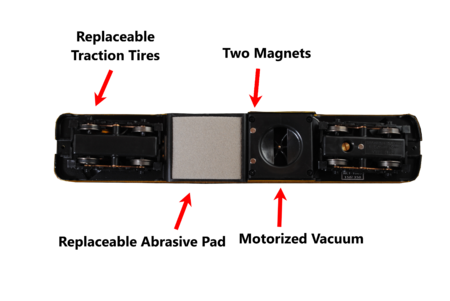

TCV Underside Diagram
Button Mappings
The values outlined below in the button mapping, sound list, and CV values are the defaults assigned to this particular decoder from the factory.
For information on how to program your locomotive using the values provided in the charts below, please see our List of Standard CVs.
| Button Mappings | |
|---|---|
| Function Button | Action |
| 0 | None |
| 1 | Vacuum Cleaner |
| 2 | LED Beacon |
CV Addendum (Standard CV's)
The Track Cleaning Vehicle follows the motor and lighting CV's as described in in TCS' Comprehensive Programming Guide and List of Standard CV's. Listed below are the CV's that have been modified for the track cleaning vehicle.
| CV Number | CV Value | Description |
|---|---|---|
| CV52 | 37 | Sets LED Beacon to Double Pulse Strobe 1 on Forward/Reverse |
| CV158 | 10 | Remapped Rule17 Dimming |
